APX002
EVS Event Vision Sensor
High cost-performance ratio, high frame rate, high dynamic range, low response latency, and computationally friendly.

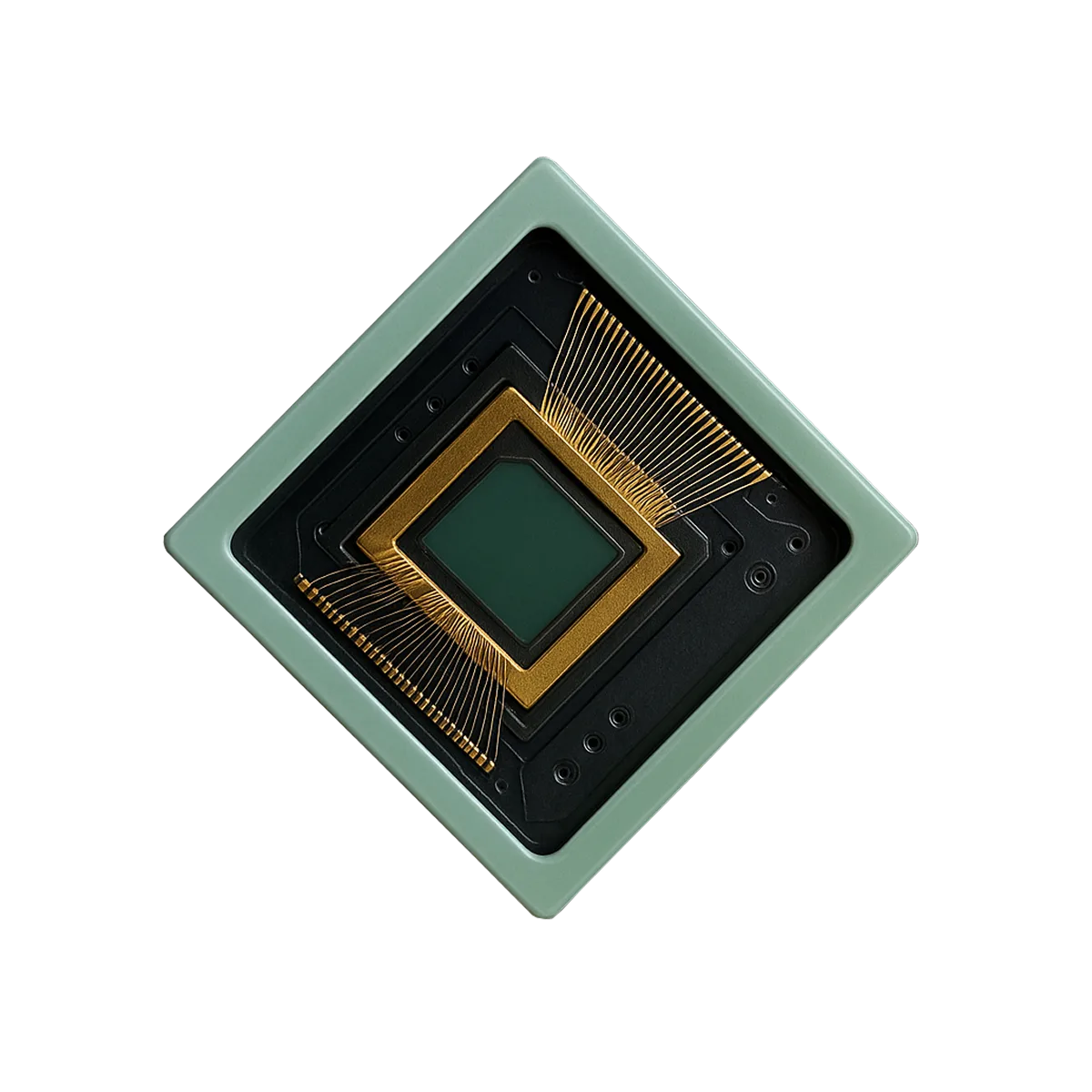

APX002 is an ultra-cost-effective Event-Based Vision Sensor (EVS) featuring high frame rate, widedynamic range, ultra-low response latency, and computility-friendly architecture. With a pixelarray of 256 x 256, 20 um x 20 ym pixel size, and 1/4" opticalformat, it outperforms conventionalframe-based cameras for applications demanding high efficiency and edge Al processing. ldeafor XR headsets (enabling precise eye-tracking and gesture recognition), AloT devices (on-devicefall detection, presence monitoring, and anomaly recognition), and professional care solutions.it delivers privacy-enhanced perception by eliminating full-image capture while significantlyreducing computational load and power consumption. This sensor enhances user experiencethrough responsive, energy-efficient Al capabilities.
Resolution
Pixel Size
EVS Edge Al
Low Power
High Dynamic Range
High Frame Rate
Product Brief
EVS
- Ultra-low power EVS modes
- High dynamic range
- High frame rate
- High sensitivity
Features
- Brand-new IN-PULSE DiADC architecture
- Compatible with main-stream low-power MCU/SoC
- Supports low power Always-On
Functions
- Supports event-based vision sensingOutputs EVs signals
Interface
- Data interface: DVP
- Control interface: I²C
Applications
We provide multi-scenario solutions to help terminal devices achieve smarter and more reliable perception and interaction.
Eye tracking
Gesture recognition
Pose (Fall) detection
Presense monitoring
End Products
We provide multi-scenario solutions to help terminal devices achieve smarter and more reliable perception and interaction.
XR headsets
Edge AON Cameras
AlOT devices
Smart-care cameras
Specifications
*The specification are subject to the final product manual.Please contact us for more information if you are looking for a substaintial evaluation board for the innovative hybrid vision sensors
Resolution
256 × 256
Pixel size
20μm × 20μm
Optical format
1/4"， CRA 0°
Mode
EVS Mode
Contrast sensitivity
0%-100％ configurabel
Min. illumination
0.1 IuX
Dynamic range
-120dB
Operating voltage
Analog: 1.2 V
Digital: 1.2V
Data format
EVS: Frame Mode
Data efficiency
EVS: 1000fps@256 x 256
Chip size
5.7mm × 6.1mm
Data interface
DVP
Power consumption
< 4mW @1000fps
Product Comparison
*Specifications may vary depending on the product version and application, and may change over time. Verification by the customer's technical experts is required for the specific application. Please contact us for more information.
APX003
APX003
APX004
APX014
Model
APX003
Chip Size
8.3mm × 6.9mm
Pixel Size
1.89μm × 1.89μm
Shutter Mode
Roller Shutter
Application
Smartphones / Security Cameras
Model
APX004
Chip Size
10.7mm × 7.5mm
Pixel Size
2.88μm × 2.88μm
Shutter Mode
Roller Shutter
Application
Smart door locks / security cameras
