APX EVK Gen2

Fusion Vision Dedicated Development Board

Fusion Vision Dedicated Development Board

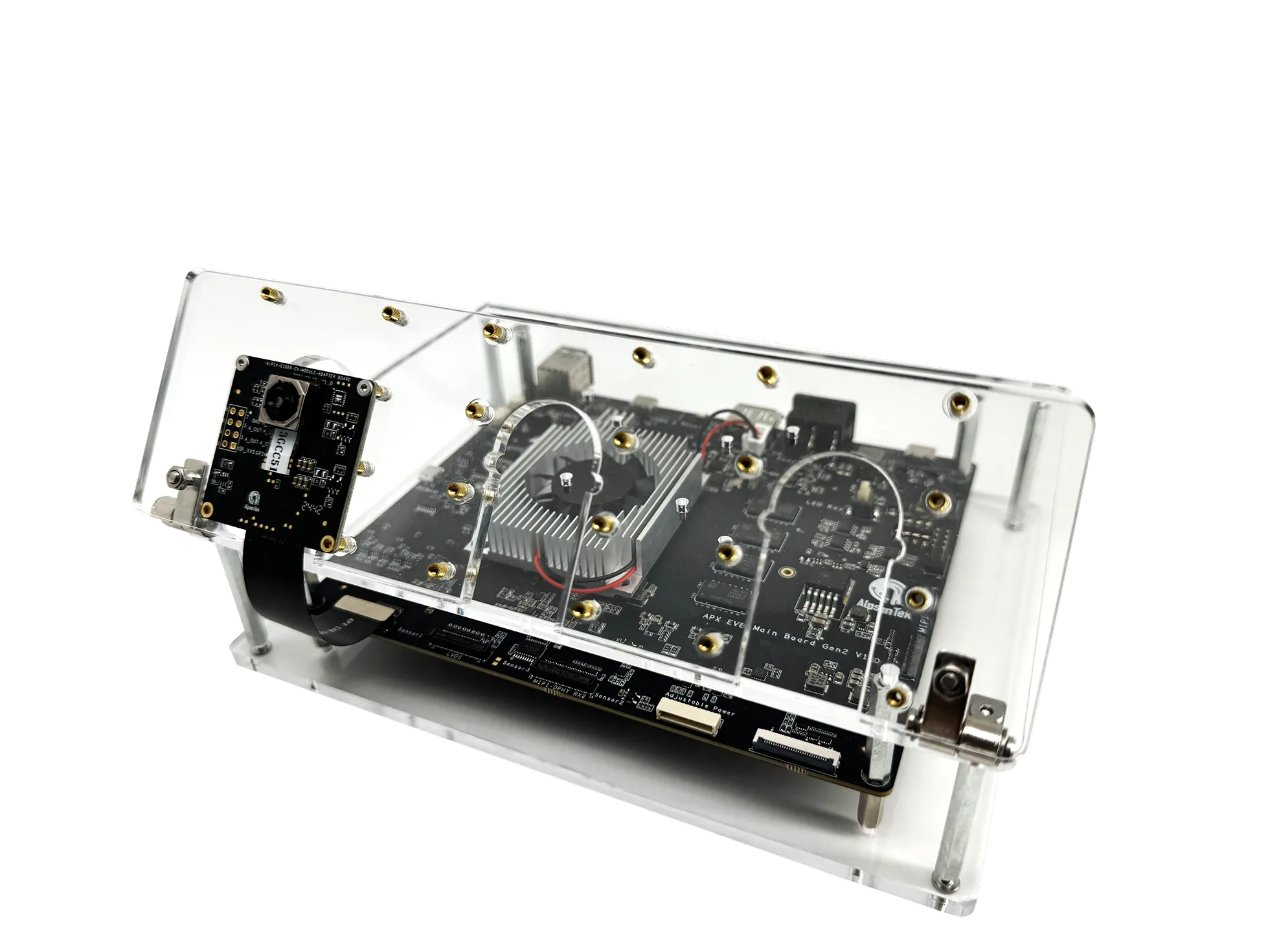

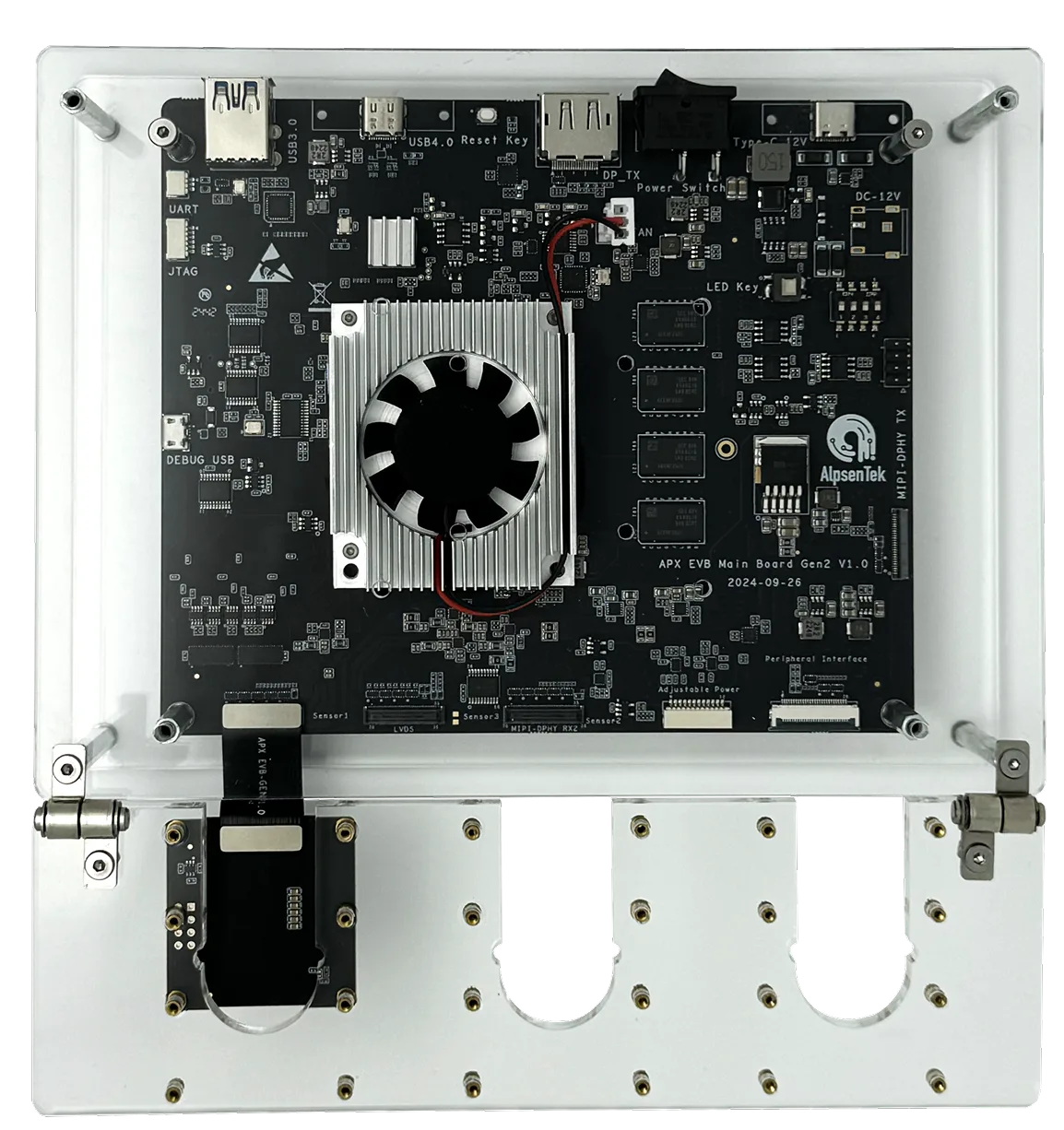

The APX EVK Gen2 incorporate an APX hvs sensor module, a robust FPGA, data storage unitspower management unit and various data interfaces, equipped with firmware, software, andalgorithmic functions to expedite user-driven development. it offers the flexibility andextendable solutions required for rapid setup, along with substantial processing power forexperimenting with various product development strategies.

Multi-sensor Compatibility

Full Access to S DK

Variety of Interfaces

Sets of Product Documentation

Key Specification

*The specification are subject to the final product manual.Please contact us for more information if you are looking for a substaintial evaluation board for the innovative hybrid vision sensors

Dimensions

L180 x W150 x H50 mm

Sensor Compatibility

APX HVs Sensors

Power Interface

Type-C, DC12V

FPGA

Block RAM: 4.5Mb

UltraRAM: 13.5Mb

CLB LUTS: 87.8k

Debug Interface

JTAG, UART

Control Interface

12C, IBC, SPI

Extended Interface

PIR/IMU/Flashlight/VCSEL/Fill-light

DDR Memory

4GB 64-bit DDR4

Operating Voltage

Analog:1.2-4.OV

Digital:0.6-1.9V(DVDD1-3), 1.2-4V(DVDD4-5)

Bias:0-1.8V(8lane)

Output Interface

MIPI C-PHY V1.2, MIPI D-PHY V1.2

DVP, QSPI, SPI, LVDS

PC Communication Interface

USB3.0, USB4.0 & Thunderbolt 4.0

Display Port

DP1.2

Primary Boot Memory

QSPI Norflash 64M

Secondary Boot Memory

SDHC card

eMMc Memory

EMMC4.5, 16GB

Model Specifications

Model

Document

Contact Sales

APS Resolution(MP)

EVS Resolution(MP)

APS Frame Rate(FPS)

EVS Frame Rate(FPS)

APS Dynamic Range(dB)

EVS Dynamic Range(dB)

Pixel Size(μm)

1.3
1.3
120
1000
>68
>120

2.79 x 2.79

4
0.45
60
500
>70
>120

2.88 x 2.88

8
0.4
30
4000
>60
>100

1.89 x 1.89

0.065
1000
1000
~120

20 x 20
