APX014
Hybrid Vision Sensor
High frame rate, low power consumption, and global exposure fusion vision sensor

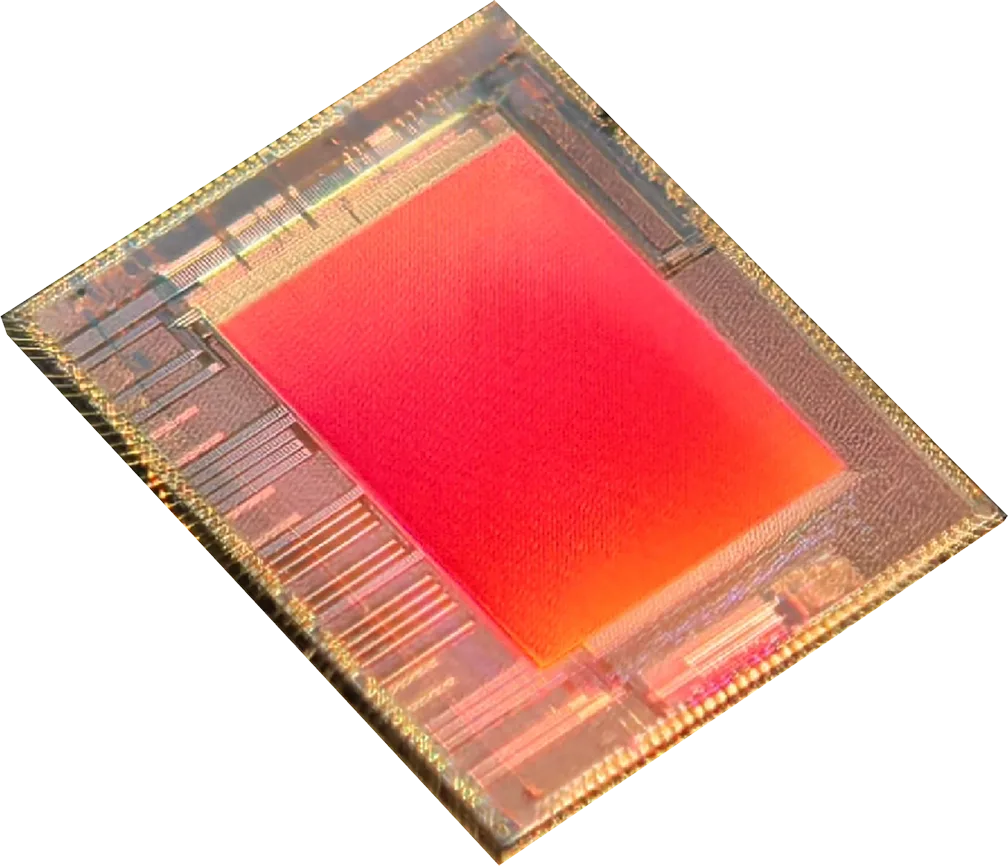

APX014 is a high frame rate, low power, global-shutter Hybrid Vision sensor that supports imageevent, hybrid and motion detection mode, with a 1.3MP image resolution, a 2.79 um x 2.79 umpixel size and a 1/4 " optical size. As the first HVs sensor which enables global shutter, it greatlyreduces exposure time, improves SNR and avoids the jelly effect caused by roling shutter.
it hightime resolution, low power and high dynamic range eventsensing, accurately records movementtrajectory enhances imaging quality. Combined with the HVs® featured algorithms, ALPlX-Pizol.is fairly suitable for XR Headsets, drones, robots, smart cars, industrial inspection and so forth,providing more competitive solutions for spatial intelligence and computing.
High temporal resolution
Pixel size
Six modes
Low Power
Global Shutter
Global Shutter
Product Brief
EVS
- Low power EVS
- High dynamic range
- High sensitivity
APS
- Excellentimager quality
- High frame rate
- Solid low light performance
Features
- 3D Stacking, BSl
- Supports EVS/APS/HVS modes
- In-Pixel CDS
- Ultra-low noise
Functions
- HVS® /APS only/EVS only
- ULPMD on chip, LPMD on chip
- AON-ALS
- FASE-AE
Interface
- Date interface：MIPI CSI-2, D-PHY 1.2, 2 lanes 2.5 Gbps/lane, DVP
- Controlinterface：I²C
Applications
We provide multi-scenario solutions to help terminal devices achieve smarter and more reliable perception and interaction.
Structured light
Detection and Tracking
Scan, measure and reconstruct
Obstacle avoidance/SLAM
End Products
We provide multi-scenario solutions to help terminal devices achieve smarter and more reliable perception and interaction.
XR headsets
Drones and robots
Automotive
Machine vision
Specification
*The specification are subject to the final product manual.Please contact us for more information if you are looking for a substaintial evaluation board for the innovative hybrid vision sensors
Resolution
APS: 1.3MP
EVS: 1.3MP
EVS-APS: 0.65MP, HVS-EVS:0.65MP
Pixel size
2.79μm × 2.79μm
Optical format
1/4"， CRA 25°
Operation mode
GS-APS / EVS / HVS / MD
EVS contrast sensitivity
0%-100％ Configurable
Exposure mode
Global shutter
Minimal illumination
0.1 IuX
Dynamic range
APS: > 68dB
EVS: 120dB
ROI
Support APS/EVS mode
Operatin voltage
Analog: 3.0 V, 1.8V
Digital: 1.1V
I/O:1.8V
lmage data format
Raw8 / Raw10
Frame rate
APS:120FPS @Full Size
EVS:1000FPS @ Full Size
Chip size
5.4mm × 4.05mm
Data Interface
MIPI, DVP, QSPI
Package
COB
Product Comparison
*Specifications may vary depending on the product version and application, and may change over time. Verification by the customer's technical experts is required for the specific application. Please contact us for more information.
APX003
APX003
APX002
APX004
Model
APX003
Chip Size
8.3mm × 6.9mm
Pixel Size
1.89μm × 1.89μm
Shutter Mode
Roller Shutter
Application
Smartphones / Security Cameras
Model
APX002
Chip Size
5.7mm × 6.1mm
Pixel Size
20 μm × 20μm
Shutter Mode
—
Application
Autonomous driving / Portable imaging devices
